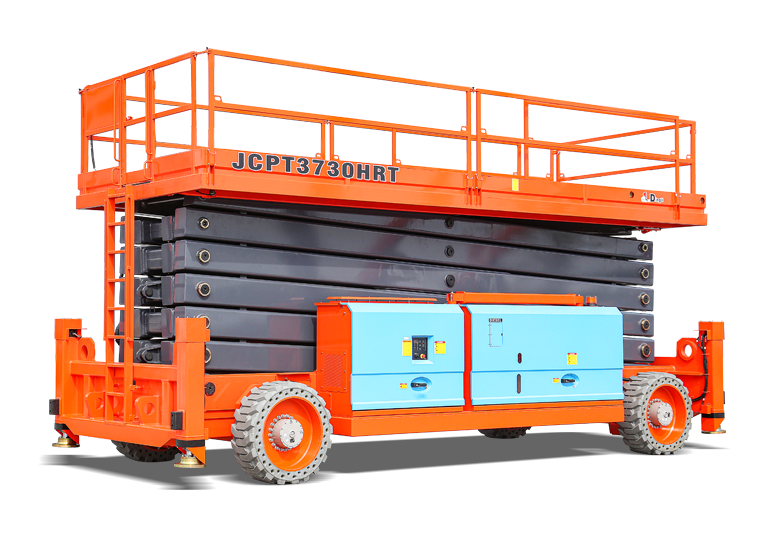

Dingli JCPT3730HRT
  • Dingli JCPT3730HRT
Scissor Lift

Dingli JCPT3730HRT

  • 37.00m/121ft 5in
    Max. Working Height
  • 35.00m/114ft 10in
    Max. Platform Height
  • 8.00m/26ft 3in
    Overall Length(With Outriggers)
View Complete Details
  • Overview
  • Specifications
Overview

● Equipped with a low-power engine

● Battery can be used as a starter battery

● Under normal working conditions, the engine can charge the battery; under complex working conditions, the battery can provide additional torque output.

● Renewable biodiesel can be filled, offering the advantages of high energy saving, more economical, strong power and more eco-friendly


Specifications
Max. Working Height 37.00m/121ft 5in
Max. Platform Height 35.00m/114ft 10in
Overall Length(With Outriggers) 8.00m/26ft 3in
Overall Width 3.00m/9ft 10in
Overall Height(Rails Up) 4.20m/13ft 9in
Overall Height(Rails Down) 3.25m/10ft 8in
Platform Size(Length×Width) 7.46m×2.74m / 24ft 6in×9ft
Platform Extension Size 2.25m/7ft 5in
Ground Clearance(Stowed/Raised) 0.35m/1ft 2in
Wheelbase 5.50m/18ft
Turning Radius(Inside/Outside) 5.00/8.00m / 16ft 5in/26ft 3in
Tyres Φ1025×365mm
S.W.L 750kg/1654lb
S.W.L On Extension 750kg/1654lb
Max. Occupants(Indoor/Outdoor) 4/4
Gradeability 25%
Travel Speed(Stowed) 2.7km/h / 1.68mph
Travel Speed(Raised) 0.2km/h / 0.12mph
Max. Working Slope X-2°/Y-3°
Up/Down Speed 180/170sec
Overall Weight(With Outriggers) 39500kg/87083lb
Range Extended Engine ’KUBOTA Z482 (9.8kW/3600rpm)
Diesel Tank 130L/34gal
Hydraulic Tank 600L/159gal
Battery 80V/660Ah
Charger 80V/80A
Driving Motor 4×56VDC/6kW
Lifting Motor 2×53VAC/28kW
