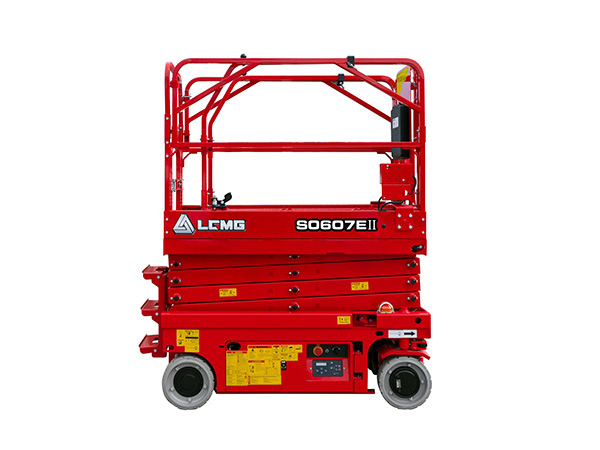

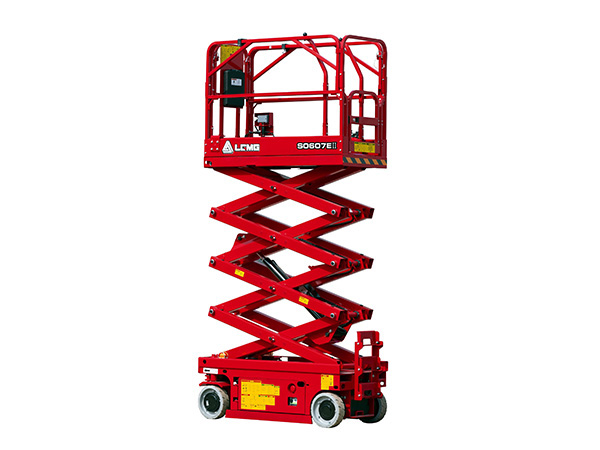

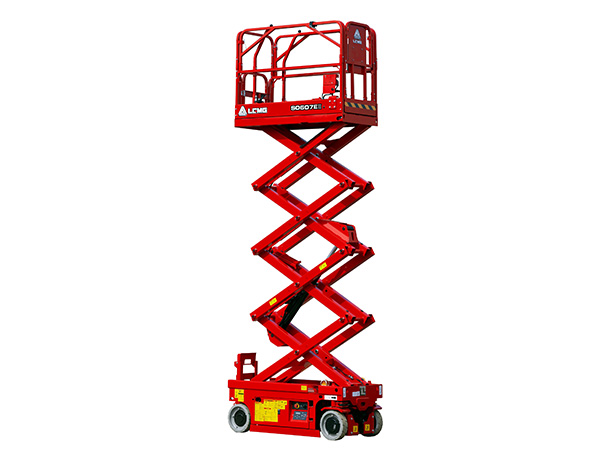

LGMG S0607EⅡ(S1932EⅡ)
  • LGMG S0607EⅡ(S1932EⅡ)
  • LGMG S0607EⅡ(S1932EⅡ)
  • LGMG S0607EⅡ(S1932EⅡ)
Scissor Lift

LGMG S0607EⅡ(S1932EⅡ)

  • 7.8m(25.7ft)
    Work Height Max.
  • 230kg(510lbs)
    Platform Capacity
  • 0.79m(2.7ft)
    Machine Width
View Complete Details
  • Overview
  • Specifications
Overview

The second generation of scissors lifts has been improved in various aspects, such as performance and design, which makes them even more convenient to maintain and safer to operate.



● Large lower control panel

● Entire range designed for Indoor and outdoor use

● Universal key components

● More convenient to maintain

● Optional lithium battery for the entire product range

STANDARD FEATURES:

Indoor and outdoor rated

Proportional control

Foldable guardrail

Emergency stop device

Manual brake release

Emergency descent

Swing-out component tray

Pothole guard

Self-lock entry gate

Tilt alarm with lift cut-out

Overload sensing system

Descent alarm with flashing beacon

All motions alarm

Full-height drive

Intelligent diagnostic system

Solid non-marking tires



OPTIONAL:

AC power to platform

Anti-collision device

Biodegradable hydraulic oil

Maintenance-free battery

Voice alarm system

Telematics

Specifications
ModelsS0607EⅡS1932EⅡ
Measurements
Work Height Max.7.8m25'7''
A-Platform Height-Raised5.8m19'
B-Platform Length1.64m5'5''
C-Platform Width0.73m2'5''
D-Overall Length1.83m6'
E-Overall Width0.79m2'7''
F-Overall Height-Guardrails Up2.16m7'1''
G-Overall Height-Guardrails Down1.81m5'11''
H-Extension Deck0.9m2'11''
I-Wheelbase1.35m4'5''
Ground Clearance(Stowed/Raised)78/26mm3''/1''
Productivity
Max. Platform Occupants2 (in) /1 (out)
Platform Capacity230kg510 lbs
Platform Capacity-Extension Deck120kg265 lbs
Drive HeightFull Height
Gradeability-Stowed25%
Min. Turning Radius1.8m5'11''
Raise/Lower Speed16s/28s
Brakes Front-wheel Brake
Drive Mode4×2
Tire TypeSolid Non-marking
Tire Size323*100mm12''x4''
Ground Pressure, Tyres978 kPa141.8 psi
Power
Power Source 24V (4x6V) 225Ah, FLA
Power Source (Lithium Battery)                                24V 160Ah
Hydraulic System
Hydraulic Oil Capacity5L1.3gal
Weight
Machine Weight(CE/ANSI)1610kg3549 lbs
