LGMG SS0407ER(SS1230ER)
  • LGMG SS0407ER(SS1230ER)
Scissor Lift

LGMG SS0407ER(SS1230ER)

  • 5.6m(18.4ft)
    Work Height Max.
  • 240kg(530lbs)
    Platform Capacity
  • 0.76m(2.5ft)
    Machine Width
View Complete Details
  • Overview
  • Product Features
  • Specifications
Overview

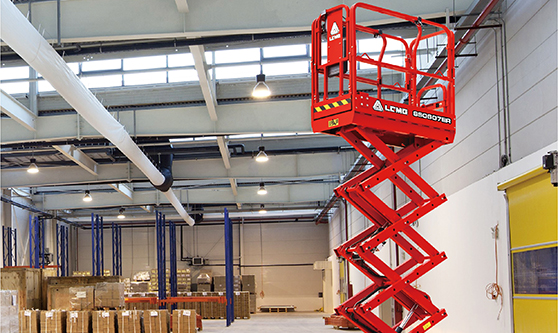

LGMG ER Series scissor lifts are equipped with an advanced maintenance free battery for better productivity with a lower service cost. This series is an ideal solution for the low-level access and space restricted application job sites. Shorter overall machine length and lighter weight makes it suitable for most elevators.


l Lightweight and compact, this machine can easily be transported in passenger elevators.

l The foldable climbing ladder effectively reduces the overall length of the machine.

l Rear-wheel drive, precise and smooth driving control, easy and reliable operation.

l Highly efficient motor drive system provides better climbing performance.

l Indoor-outdoor model, excellent load capacity, 240kg platform capacity for 2 persons.


Standard features

Proportional control

Foldable guardrail

Emergency stop device

Manual brake release

Emergency descent

Swing-out component tray

Pothole guard

Self-lock entry gate

Tilt alarm with lift cut-out

Overload sensing system

Descent alarm with flashing beacon

Solid non-marking tires

All motions alarm

Full-height drive

Intelligent diagnostic system


Options

AC power to platform

Anti-collision protection

Biodegradable hydraulic oil

Telematics

Voice alarm system

Product Features

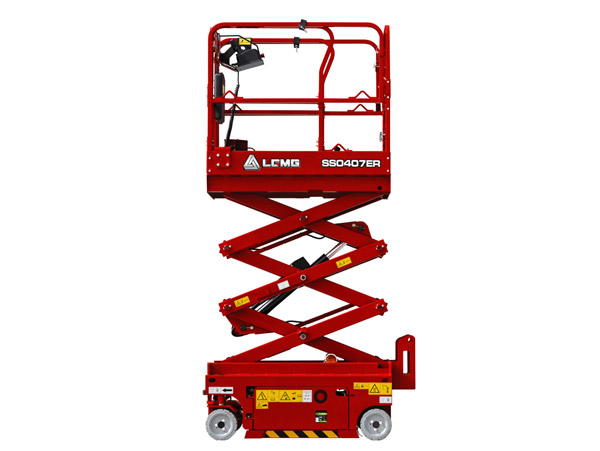

LGMG SS0407ER(SS1230ER)
Specifications
ModelsSS0407ERSS1230ER
Measurements
Work Height Max.5.6m18'5''
A-Platform Height-Raised3.6m11'10''
B-Platform Length1.27m4'2''
C-Platform Width0.7m2'4''
D-Overall Length (with ladder)1.47m4'10''
E-Overall Width0.76m2'6''
F-Overall Height-Guardrails Up2m6'7''
Overall Height-Guardrails Down1.57m5'2''
G-Extension Deck0.6m2'
H-Wheelbase1.05m3'5''
Ground Clearance(Stowed/Raised)50/20mm2''/0.8''
Productivity
Max. Platform Occupants2 (in) /1 (out)
Platform Capacity240kg530 lbs
Platform Capacity-Extension Deck100kg221 lbs
Drive HeightFull Height
Gradeability-Lowered25%
Min. Turning Radius1.55m5'1''
Raise/Lower Speed25/18s
Brakes Rear-wheel Brake
Drive Mode4×2
Tires TypeSolid Non-marking
Tires Size230×80mm9''×3''
Ground Pressure, Tyres602 kPa87.3 psi
Power
Power Source 24V DC (2x12V) 100Ah,AGM
Hydraulic System
Hydraulic Oil Capacity4L1gal
Weight
Machine Weight(CE/ANSI)880kg1940 lbs
