Work Height | 6.5m/5.6m|21ft 4in/18ft 5in |

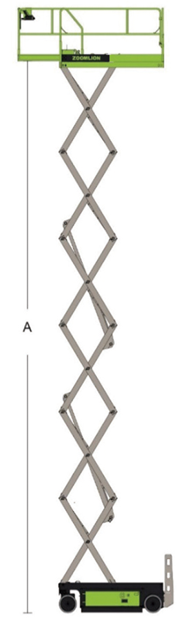

A-Platform Height-Elevated | 4.5m/3.6m|14ft 9in/11ft 10in |

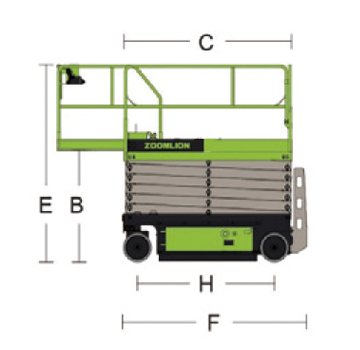

B-Platform Height-Stowed | 0.95m|3ft 1in |
C-Platform Length | 1.29m|4ft 3in |

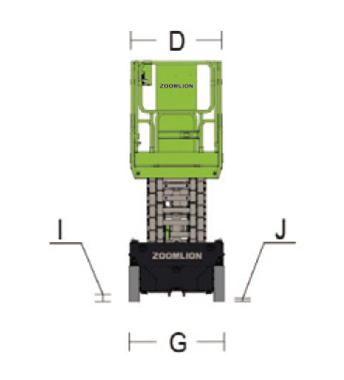

D-Platform Width | 0.7m|2ft 4in |
Platform Extension | 0.6m|2ft |
E-Overall Height (Rails Up) | 2.05m|6ft 9in |
Overall Height (Rails Down) | 1.7m|5ft 7in |
F-Overall Length | 1.44m|4ft 9in |
G-Overall Width | 0.76m|2ft 6in |
H Wheelbase | 1.05m|3ft 5in |
I-Ground Clearance (Stowed) | 0.06m|2.4in |
J-Ground Clearance (Raised) | 0.017m|0.65in |
Platform Capacity | 240kg|530lb |
Capacity on Deck Extension | 100kg|220lb |
Max. Number of Workers | Indoor: 2 Outdoor: 1|Indoor: 2 Outdoor: 1 |
Drive Speed (Stowed) | 4km/h|2.5mph |
Drive Speed (Raised) | 0.8km/h|0.5mph |
Turning Radius (Inside) | 0.4m|1ft 4in |
Turning Radius (Outside) | 1.6m|5ft 3in |
Lifting Motor | 24V/1.2KW|24V/1.2KW |
Drive Motor | 2x0.4 5KW|2x0.4 5KW |
Up/Down Time | 23/25s|23/25s |
Gradeability | 30%(17°)|30%(17°) |
Max. Working Slope (Lateral/Vertical) | 1.5°/3°|1.5°/3° |
Control | Proportional Control|Proportional Control |
Drive | Rear Wheels|Rear Wheels |
Brake | Rear Wheels|Rear Wheels |
Tire | Ø230mmx80mm|ф9in×3in |
Battery | 2×12V/85Ah (HOPPECKE)2×12V/70Ah (FULLRIVER)|2×12V/85Ah (HOPPECKE)2×12V/70Ah (FULLRIVER) |
Charger | 24V/15A|24V/15A |
Gross | 895kg|1975lb |
