Zoomlion ZS0407DC-Li
  • Zoomlion ZS0407DC-Li
Scissor Lift

Zoomlion ZS0407DC-Li

  • 6.5m/5.6m|21ft 4in/18ft 5in
    Work Height
  • 4.5m/3.6m|14ft 9in/11ft 10in
    A-Platform Height-Elevated
  • 0.95m|3ft 1in
    B-Platform Height-Stowed
View Complete Details
  • Overview
  • Specifications
Overview

Electric powered scissor lifts, boosting high productivity with zero emission and low noise working conditions.

CE/ANSI/CSA Certified




High Performance

Efficient electric direct drive system

Compact dimensions ideal for low and tight access applications

Lightweight only 19751b/895kg

Climbing up30 percent grade slopes in a stowed position

A maximum work height of 21ft 4in/6.5m


Cost- Effectiveness

Modularized and unitized parts design ideal for maintenance

Drawer type tray easy to service

Robust & build to last, reliable, and safe


Specifications
Work Height 6.5m/5.6m|21ft 4in/18ft 5in

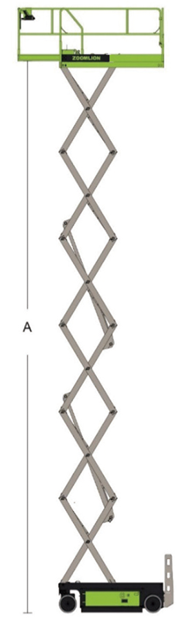

A-Platform Height-Elevated 4.5m/3.6m|14ft 9in/11ft 10in

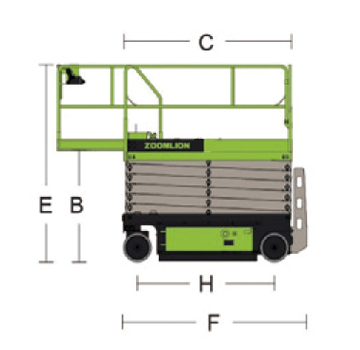

B-Platform Height-Stowed 0.95m|3ft 1in
C-Platform Length 1.29m|4ft 3in

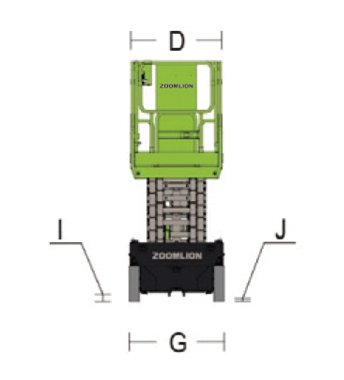

D-Platform Width 0.7m|2ft 4in
Platform Extension 0.6m|2ft
E-Overall Height (Rails Up) 2.05m|6ft 9in
Overall Height (Rails Down) 1.7m|5ft 7in
F-Overall Length 1.44m|4ft 9in
G-Overall Width 0.76m|2ft 6in
H Wheelbase 1.05m|3ft 5in
I-Ground Clearance (Stowed) 0.06m|2.4in
J-Ground Clearance (Raised) 0.017m|0.65in
Platform Capacity 240kg|530lb
Capacity on Deck Extension 100kg|220lb
Max. Number of Workers Indoor: 2 Outdoor: 1|Indoor: 2 Outdoor: 1
Drive Speed (Stowed) 4km/h|2.5mph
Drive Speed (Raised) 0.8km/h|0.5mph
Turning Radius (Inside) 0.4m|1ft 4in
Turning Radius (Outside) 1.6m|5ft 3in
Lifting Motor 24V/1.2KW|24V/1.2KW
Drive Motor 2x0.4 5KW|2x0.4 5KW
Up/Down Time 23/25s|23/25s
Gradeability 30%(17°)|30%(17°)
Max. Working Slope (Lateral/Vertical) 1.5°/3°|1.5°/3°
Control Proportional Control|Proportional Control
Drive Rear Wheels|Rear Wheels
Brake Rear Wheels|Rear Wheels
Tire Ø230mmx80mm|ф9in×3in
Battery 80Ah Li-ion Battery|80Ah Li-ion Battery
Charger 24V/15A|24V/15A
Gross 895kg|1975lb
