Zoomlion ZS0607ACW
  • Zoomlion ZS0607ACW
Scissor Lift

Zoomlion ZS0607ACW

  • 7.8m|21ft
    Work Height (indoor/Outdoor)
  • 5.8m|19ft
    A- Platform Height-Elevated (Indoor/Outdoor)
  • 1.05m|3ft 5in
    B - Platform Height-Stowed
View Complete Details
  • Overview
  • Specifications
Overview

Electric powered scissor lifts, with work height ranging from 7.8m to 15.7m, providing high efficiency and safe operation around jobsites.

CE/ANSI/CSA Certified



High Performance

AC System offers higher working efficiency

IP67 rated waterproof protection on AC Wheel motors for longer lifespan


Cost Effectiveness

Knuckles lubrication-free and maintenance-free

AC motor full lifecycle maintenance-free

Swing-out tray easy to service

Specifications
Work Height (indoor/Outdoor) 7.8m|21ft

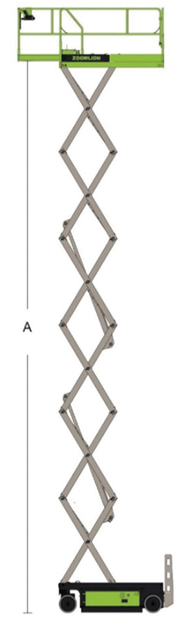

A- Platform Height-Elevated (Indoor/Outdoor) 5.8m|19ft

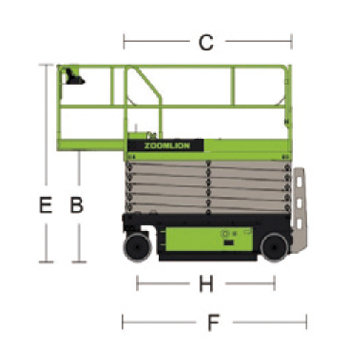

B - Platform Height-Stowed 1.05m|3ft 5in
C - Platform Length 1.65m|5ft 5in

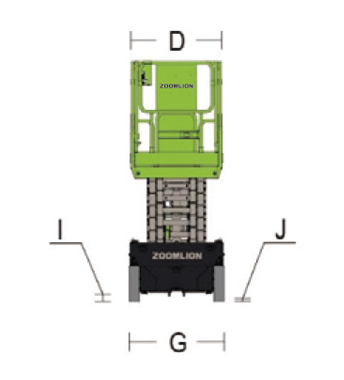

D- Platform Width 0.74m|2ft 5in
Platform Extension 0.91m|3ft
E-Overall Height (Rails Up) 2.20m|7ft 3in
Overall Height (Rails Down) 1.79m|5ft 10in
F- Overall Length 1.85m|6ft 1in
G - Overall Width 0.81m|2ft 8in
H - Wheelbase 1.37m|4ft 6in
I- Ground Clearance (Stowed) 0.06m|2.4in
J- Ground Clearance (Raised) 0.016m|0.65in
Platform Capacity 230kg|510lb
Capacity on Deck Extension 113kg|250lb
Max. Number of Workers (Indoor/Outdoor) 2/1|2/1
Drive Speed (Stowed) 4km/h|2.5mph
Drive Speed (Raised) 0.8km/h|0.5mph
Turning Radius (Inside) 0.1m|4in
Turning Radius (Outside) 1.6m|5ft 3in
Lifting Motor 24V/3.3KW|24V/3.3KW
Drive Motor 2x0.65KW|2x0.65KW
Up/Down Time 20s/24s|20s/24s
Gradeability 25%(14°)|25%(14°)
Max. Working Slope (Lateral/Vertical) 1.5°/3°|1.5°/3°
Control Proportional Control|Proportional Control
Drive Front Wheels|Front Wheels
Brake Front Wheels|Front Wheels
Tire Ø323mmx100mm|ф13in×4in
Battery 4×6V/170Ah (HOPPECKE)4×6V/180Ah (QUIMO)|4×6V/170Ah (HOPPECKE)4×6V/180Ah (QUIMO)
Charger 24V/30A|24V/30A
Gross 1620kg|3570lb
