Zoomlion ZS1623RT
  • Zoomlion ZS1623RT
Scissor Lift

Zoomlion ZS1623RT

  • 18m|59ft
    Work Height
  • 16m|52ft 6in
    A Platform Height-Elevated
  • 2.03m|6ft 8in
    B Platform Height-Stowed
View Complete Details
  • Overview
  • Specifications
Overview

Rough terrain scissor lift, with 18m work height and 680kg platform capacity, offers large lift capacity with high reliability.

CE/ANSI/CSA Certified






High Performance

Strong capacity of 680kg with high working efficiency

4WD and axle oscillation provide great off-road capability

One-Click leveling function

Bilateral power system effective to lower noise


Cost Effectiveness

Knuckles lubrication-free and maintenance-free

Swing-out tray easy to service


Specifications
Work Height 18m|59ft

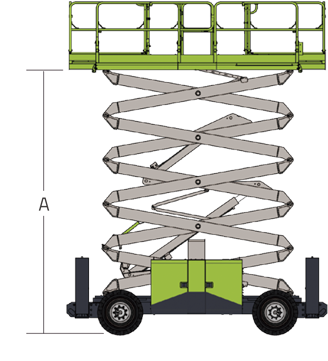

A Platform Height-Elevated 16m|52ft 6in
B Platform Height-Stowed 2.03m|6ft 8in
C Platform Dimension (Length) 3.98m|13ft 1in
D Platform Dimension (Width) 1.83m|6ft
Platform Extension 1.3m|4ft 3in
Overall Height (Rails Up) 3.16m|10ft 4in
E Overall Height (Rails Down) 2.47m|8ft 1in
F Overall Length 4.88m|16ft
G Overall Width 2.3m|7ft 7in
H Wheelbase 2.9m|9ft 6in
I Ground Clearance 0.275m|11in
Platform Capacity 680kg|1500lb
Capacity on Deck Extension 230kg|510lb
Drive Height 9m|29ft 6in
Max. Number of Workers 4|4
Drive Speed (Stowed) 6.5km/h|4mph
Drive Speed (Raised) 0.5km/h|0.3mph
Turning Radius (Inside) 2.75m|9ft
Turining Radius (Outside) 5.8m|19ft
Up/Down Time 60/65s|60/65s
Gradeability 40%(22°)|40%(22°)
Max. Working Slope (Lateral/Vertical) 2°/3°|2°/3°
Drive 4WD|4WD
Tire 315/55 D20 Foam-filled Tires33×12-20/8 Solid Tires|315/55 D20 Foam-filled Tires33×12-20/8 Solid Tires
Engine Kubota V2403 36kw/2600rpm (EU Ⅲ)Kubota V2403 36.8kw/2700rpm (EU Ⅴ)|Kubota V2403 36kw/2600rpm (EU Ⅲ)Kubota V2403 36.8kw/2700rpm (EU Ⅴ)
Fuel Tank Capacity 105L|27.7 (us gal)
Hydraulic Tank Capacity 100L|26.4 (us gal)
Gross 8650kg|19070lb
