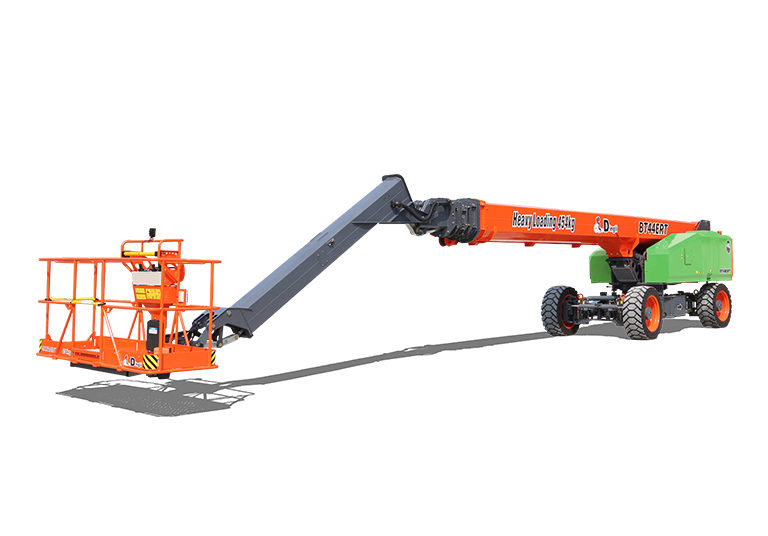

Dingli BT44ERT
  • Dingli BT44ERT
Telescopic Boom Lift

Dingli BT44ERT

  • 44.44m/146ft
    Max. Working Height
  • 42.44m/139ft 3in
    Max. Platform Height
  • 25.60m/83ft 12in
    Max. Operating Range(+0.6m)
View Complete Details
  • Overview
  • Specifications
Overview

● Developed by TEUPEN, DINGLI’s German R&D center;

● Modular design horizontally & vertically, 85% of the components common in the full range, electric / diesel / hybrid models developed on the same platform;

● Patented innovation of one key in-situ axle expansion, four-wheel drive & steering, axle expansion & retraction in narrow space at will;

● 40% increase in action efficiency compare with equivalent products in the industry;

● Cat3 safety architecture, full redundancy of electronic control software & hardware;

● Jib with 230°amplitude, which can be hooked back to suit standard container transport;

● Equipped with 360V200-230Ah modular high-voltage power battery, 1.5-hour fast charging.

Reach

Specifications
Max. Working Height 44.44m/146ft
Max. Platform Height 42.44m/139ft 3in
Max. Operating Range(+0.6m) 25.60m/83ft 12in
Max. Platform Range 25.00m/82ft
Overall Length(Stowed) 17.00m/55ft 9in
Overall Width(Axle Expanded) 4.17m/13ft 8in
Overall Width(Axle Retracted) 2.44m/8ft
Overall Height(Stowed) 2.83m/9ft 3in
Transport Size(Length×Width×Hight) 11.92m×2.44m×2.83m/39ft 2in×8ft×9ft 3in
Platform Size(Length×Width) 2.44m×0.91m/8ft×2ft 11in
Turntable Tailswing(Axle Expanded) 1.39m/4ft 7in
Turntable Tailswing(Axle Retracted) 2.28m/7ft 6in
Ground Clearance(Stowed/Raised) 0.40m/1ft 4in
Wheelbase(Axle Expanded) 4.07m/13ft 4in
Wheelbase(Axle Retracted) 4.27m/14ft
S.W.L(Unrestricted/Restricted) 300kg/454kg / 661lb/1000lb
Max. Occupants 3
Gradeability 30%
Travel Speed(Stowed) 6.0km/h / 3.73mph
Travel Speed(Raised) 1.1km/h / 0.68mph
Max. Working Slope
Turret Rotation 360°Continuous
Platform Rotation 180°
Jib Movement 230°
Main Boom Maximum Angle 75°
Turning Radius(Inside/Outside)Axle Expanded 2.99m/5.41m/10ft/17ft 9in
Turning Radius(Inside/Outside)Axle Retracted 8.27m/10.85m/27ft 1in/35ft 7in
Tyres 445/50/D710
Overall Weight 22700kg/50045lb
Lithium Battery 358.4V/228Ah
Charger 358.4V/32A
Emergency Power System 12V
Lifting Motor 360V/30kW
Hydraulic Tank 230L/60gal
