Zoomlion ZT32JE
  • Zoomlion ZT32JE
Telescopic Boom Lift

Zoomlion ZT32JE

  • 34.3m|112ft 6in
    Work Height
  • 32.3m|105ft 11in
    Platform Height
  • 19.2m|63ft
    Horizontal Outreach
View Complete Details
  • Overview
  • Specifications
Overview

CE/ANSI/CSA Certified


Electro-hydraulic system with auto flflow controlling , saving energy of 13.8%/9%/10%

Safe and reliable lithium battery power systam equipped with BMS  low-temperature heating and low-temperature charging current  control functions improves battery life by 30% and adapts to -20℃  cold environment

Maintenance-free wheel side AC drive system, the maximum  gradeability can reach 45%

Fast charging technology adapting to complex charging  enviornment, no fear of wide voltage flfluctuations, effiffifficiency  increased by 20%

Largest electric telescopic boom lift with non-extension  axle, work height reaches 34.3m

Hexagonal boom design with good stiffffness

Specifications
Work Height 34.3m|112ft 6in
Platform Height 32.3m|105ft 11in
Horizontal Outreach 19.2m|63ft

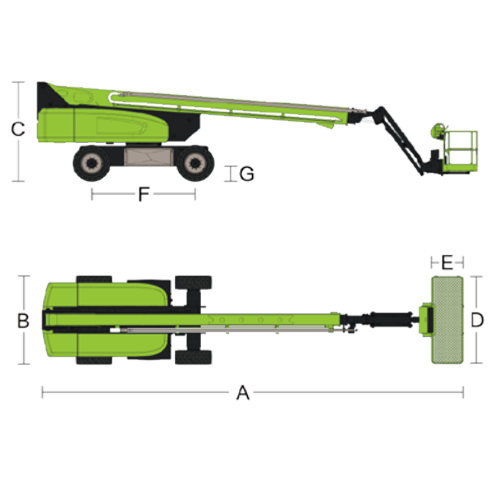

A - Stowed Length 12.9m|42ft 4in
B - Stowed Width 2.49m|8ft 2in
C - Stowed Height 2.75m|9ft
D - Platform Length 2.44m|8ft
E - Platform Width 0.91m|3ft
F - Wheelbase 2.80m|9ft 2in
Tread 2.49m|8ft 2in
G - Ground Clearance 0.41m|1ft 4in

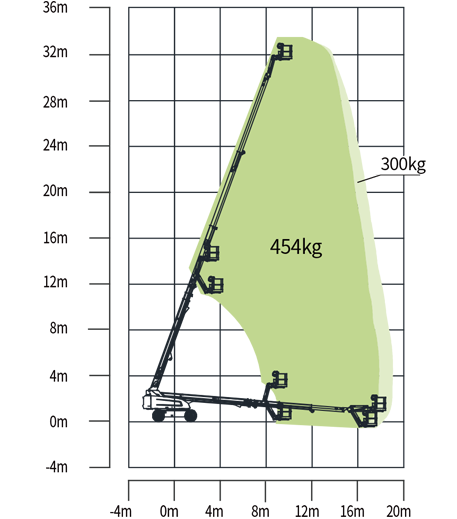

Platform Capacity (Unrestricted/Restricted) 300/454kg|660/1000lb
Drive Speed (Stowed) 5.5km/h|3.42mph
Gradeability 45%(24°)|45%(24°)
Turning Radius (Inside) 3.11m|10ft 2in
Turning Radius (Outside) 6.16m|20f 3m
Turntable Swing 360°continuous|360°continuous
Platform Rotation ±90°|±90°
Tail Swing 1.52m|5ft
Jib Rotation 135°(-60°~75°)|135°(-60°~75°)
Max. Wind Speed 12.5m/s|28mph
Battery 80V / 460Ah|80V / 460Ah
Charger 6kW|6kW
Drive Motor 5.2kW|5.2kW
Lifting Motor 30kW|30kW
Auxiliary Power 2kW|2kW
Hydraulic Tank 125L|33 gal
Type Foam-filled tire Solid tire|Foam-filled tire Solid tire
Gross 18600kg|41005lb
