SDMIX EV
  • SDMIX EV
Crushing and screening equipment

SDMIX EV

  • 250t/h
    Processing capacity
  • 250kW
    Motor power
  • 50mm
    Maximum feed particle size
View Complete Details
  • Overview
  • Specifications
Overview

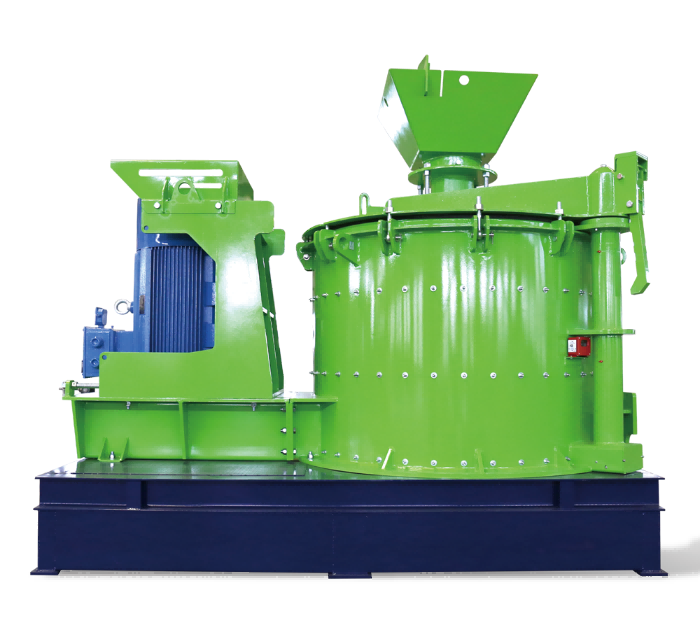

EV Series VSI is a new generation of high-efficiency sand making machine produced by our company. It has two functions of sand making and shaping, so it is generally used in the last process of sand aggregate production line. It is widely used in the crushing and shaping of limestone, river pebbles, stone chips and other sand and gravel aggregates; in the field of engineering construction, municipal engineering, bridges and tunnels and other machine-made sand production and stone shaping.

This Series VSI can be converted into two crushing modes of rock-on-rock and rock-on-iron by simply replacing parts according to customer requirements.

1. The unique deep-cavity rotor, through the optimization of the internal channel structure and path of the rotor, the output is increased by 20%;

2. Thin oil lubrication and air cooling. Ensure that the bearing lubrication is always in the best condition and prolong the service life of the equipment;

3. The bearing adopts well-known foreign brands, with stable performance and long service life;

4. Belt drive, easy maintenance;

5. Modular design. Quickly change parts and guarantee continuous production.

Specifications
ModelMax Feeding size (mm)Motor power (kW)Processing capacity (t/h)Weight (t)
EV20005025025013.1
EV2300502×20035019.8
