SDMIX YK
  • SDMIX YK
Crushing and screening equipment

SDMIX YK

  • 120-200
    Processing capacity
  • 15kw
    Motor power
  • 980
    Vibration frequency
View Complete Details
  • Overview
  • Specifications
Overview

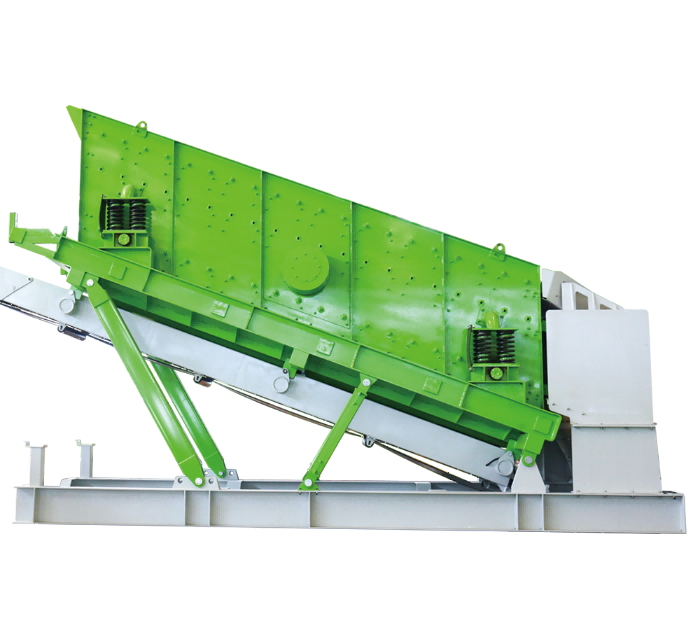

YK Series Vibrating Screen, commonly known as light screen, is widely used in sand and gravel aggregate, metal mine, coal, chemical industry, electric power and other industries. It is suitable for various typical screening operations such as heavy-duty, medium-sized and fine screening with an input particle size of ≤200mm and a grading particle size of 2mm-50mm, with an output of 100-500 tons per hour.

This series of vibrating screens is connected with the vibration exciter through the transmission bearing seat, and the life of the motor is guaranteed; the flexible coupling is used to make the transmission of torque without the transmission of axial force, so that the operation of the screen machine is more stable; The advanced large clearance bearing has the advantages of simple and reasonable structure, stable and reliable performance, large processing capacity, good screening effect, high cost performance, low noise when the whole machine is working, and convenient installation and maintenance.

1. External eccentric block structure, adjustable amplitude;

2. High-quality helical metal spring support, more stable performance;

3. Overall modular design, advanced structure, strong excitation force;

4. Brand bearings, drive shaft performance is more stable, long service life;

5. The structure is simple and easy to maintain, and a variety of discharge particle shapes are optional.

Specifications
ModelScreen layersScreen area (m²)Amplitude (mm)Vibration frequency (r/min)Motor power (kw)Processing capacity (t/h)
2YK1854210.85-998015120-200
3YK2160312.65-998030150-280
3YK2475316.85-998037240-300
2YK30752215-998055400-500
