Serial number | Model | Reduction ratio | Available motor power | Number of motor stages |
1 | 1500 | 5 | 4-15 | 4 |
2 | 1500 | 10 | 4-7.5 | 4 |
3 | 2000 | 7 | 5.5-15 | 4 |
4 | 3000 | 10 | 7.5-30 | 4 |

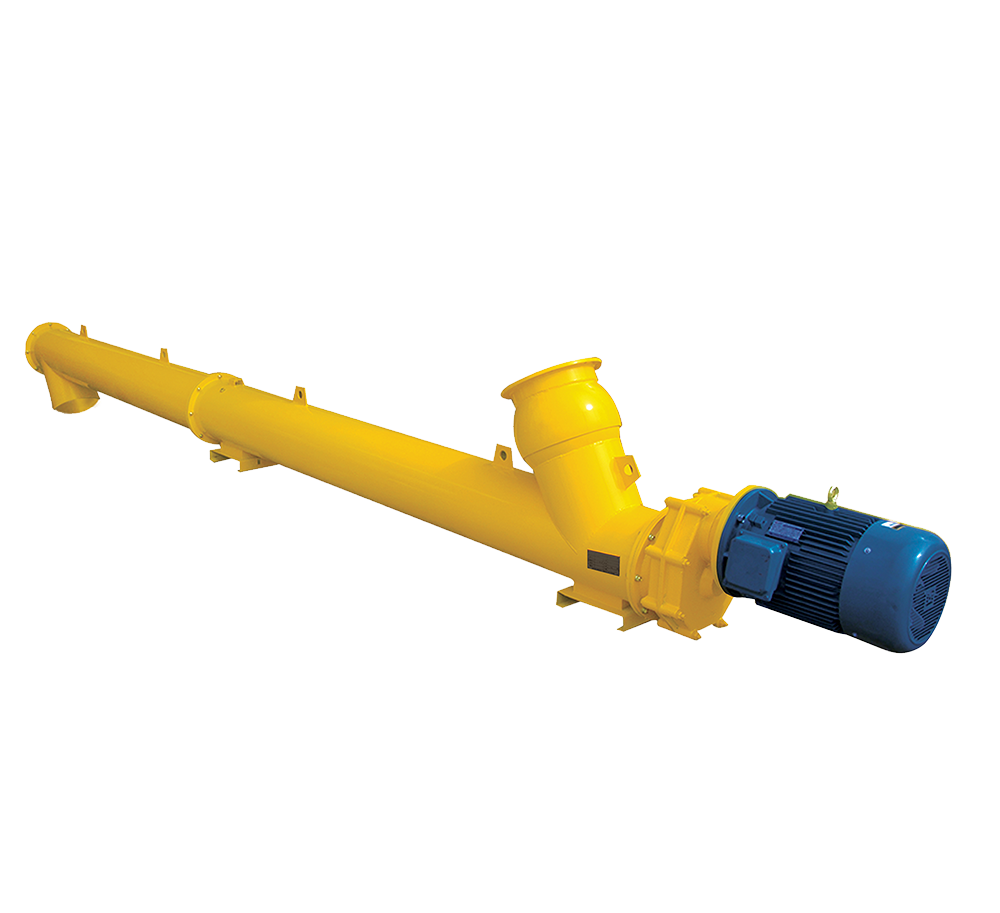

It is suitable for transporting loose powder or small particle materials in concrete mixing plant in construction machinery industry, electric power, metallurgy, chemical industry, machinery, light industry, building materials, food, feed, coal, grain storage and other industries. Such as: cement, lime, fly ash, glass, chemical fertilizer, ash, sand, coke, soda ash, pulverized coal, sinter powder, urea, compound fertilizer, dry sand, flour, grain, calcium carbonate and small coal.
1. High reliability:
(1) The outer pipe is made of
high-quality steel pipe, the inner pipe is made of seamless steel pipe,
the CNC intersecting wire cutting machine is cut, the CNC ring seam
welding machine is welded, and the straightness and wear resistance are
good;
(2) The blade is rolled with 6mm manganese plate, which is wear-resistant and stable.
(3)
Homemade high-quality gearbox, gear grinding treatment, bearing Swedish
SKF brand, oil seal adopts the "Sidaxing" brand, designs a new output
end cover seal, with transmission torsion
The moment is large and the noise is low, and there will be no oil leakage or dust leakage.
2. High adaptability:
(1)
Double screw pitch or three screw pitch design reduces the compression
degree of materials in the transportation process, and there will be no
material plugging;
(2) The universal joint process of the feeding port makes the installation and adjustment steering flexible and dust-free;
(3)
The fixation mode of the middle crane shaft is improved, and a fixed
baffle ring is added to the spline sleeve to avoid the misalignment of
the inner tube caused by the failure of the elastic baffle of the shaft.
Serial number | Model | Reduction ratio | Available motor power | Number of motor stages |
1 | 1500 | 5 | 4-15 | 4 |
2 | 1500 | 10 | 4-7.5 | 4 |
3 | 2000 | 7 | 5.5-15 | 4 |
4 | 3000 | 10 | 7.5-30 | 4 |
