Lovol LT110
  • Lovol LT110
  • Lovol LT110
  • Lovol LT110
Mining Truck

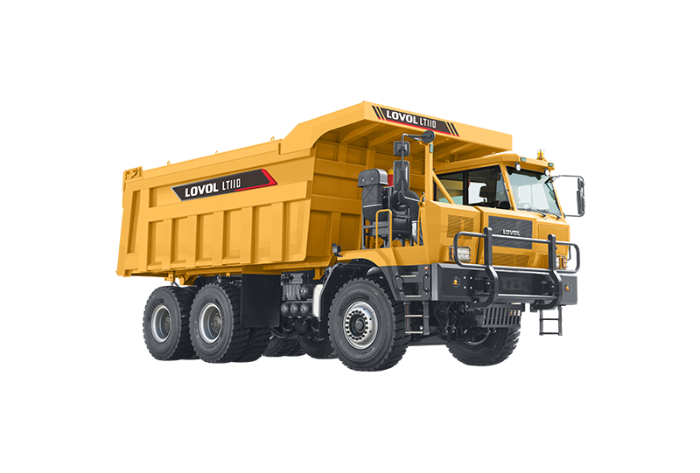

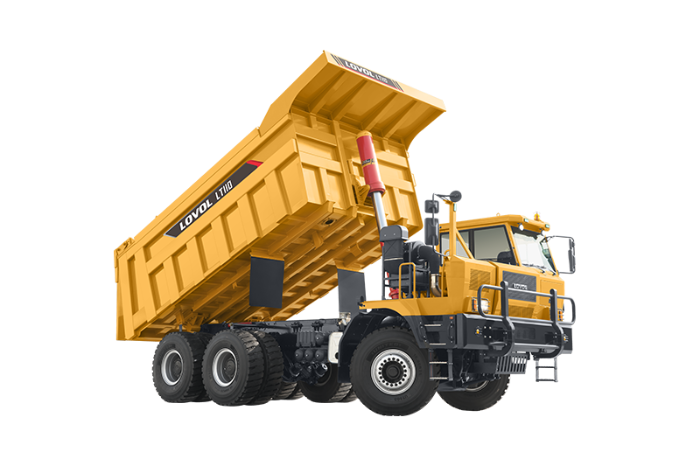

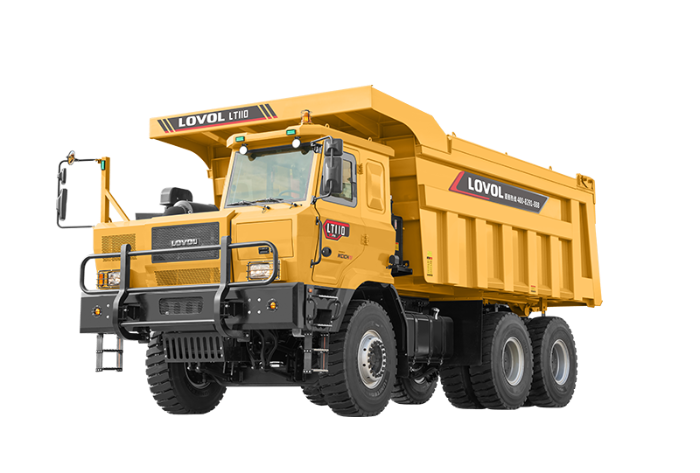

Lovol LT110

  • 105000kg
    Gross Vehicle Weight
  • 75000kg
    Max.Chassis Weight
  • Stage III
    Emissions
View Complete Details
  • Overview
  • Specifications
Overview

High efficiency

 Weichai engine + Fast gearbox + Hande bridge, Weichai power assembly, high power and high efficiency; flat-mounted 43 cubic meter bucket, high efficiency.

Reliable

The front suspension adopts a five-link non-independent oil-gas suspension; the rear suspension is a balance shaft + combined V-type 8-thrust rod structure; the main beam has three layers of 10+10+8mm, with high bending and torsion resistance, a cross-sectional height of 380mm, and a low center of gravity; the whole vehicle is more reliable.

Comfort

The new narrow-body cab has large space, good vision, low noise and more comfortable driving.

Specifications
Gross Vehicle Weight 105000kg
Max.Chassis Weight 75000kg
Emissions Stage III
Dimensions(L*W*H) 9350×3810×4180mm
Struck 38m³
Wheel Base 3885+1780mm
Max.Travel Speed 38km/h
Max.Gradeability 30°
Min.Turning Diameter 24m
Min.Ground Clearance 400mm
Engine Model WP13G530E310
Rated Power 390kW
Transmission 8DS240A
Axle Load Capacity 25/40/40t
Front Suspension Type Longitudinal leaf spring、Front rolled ear back sliding plate style
Rear Suspension Type Leaf spring balance suspension
Frame Width 1200mm
Tyre Model 16.00R25 ★★★
