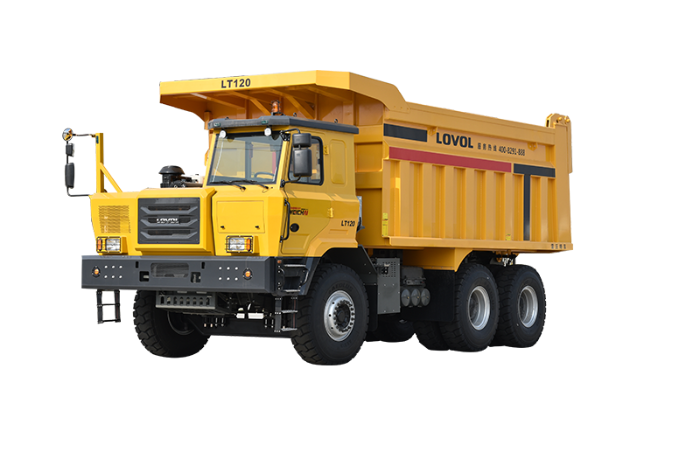

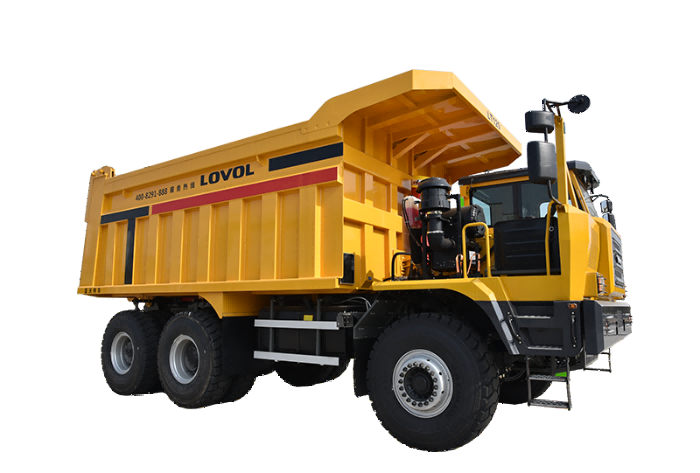

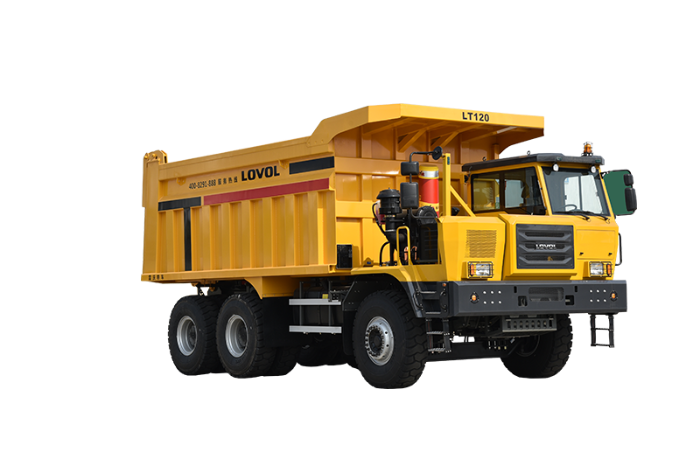

Lovol LT120
  • Lovol LT120
  • Lovol LT120
  • Lovol LT120
Mining Truck

Lovol LT120

  • 120000kg
    Gross Vehicle Weight
  • 85000kg
    Max.Chassis Weight
  • Stage III
    Emissions
View Complete Details
  • Overview
  • Specifications
Overview

High efficiency

Weichai engine + Fast gearbox + Hande bridge, Weichai power assembly, high power and high efficiency; flat-mounted 43 cubic meter bucket, high efficiency.

Reliable

The front suspension adopts a five-link non-independent oil-gas suspension; the rear suspension is a balance shaft + combined V-type 8-thrust rod structure; the main beam has three layers of 10+10+8mm, with high bending and torsion resistance, a cross-sectional height of 380mm, and a low center of gravity; the whole vehicle is more reliable.

Comfort

 The new narrow-body cab has large space, good vision, low noise and more comfortable driving.

Specifications
Gross Vehicle Weight 120000kg
Max.Chassis Weight 85000kg
Emissions Stage III
Dimensions(L*W*H) 9400×3810×4250mm
Struck 43m³
Wheel Base 3950+1780mm
Max.Travel Speed 39km/h
Max.Gradeability 30°
Min.Turning Diameter 23m
Min.Ground Clearance 410mm
Engine Model WP14TG560E304
Rated Power 412kW
Transmission 8DS280
Axle Load Capacity 30/40/40t
Front Suspension Type Five-thrust rod dydro-pneumatic suspension
Rear Suspension Type Leaf spring balance suspension
Frame Width 1200mm
Tyre Model 16.00R25
