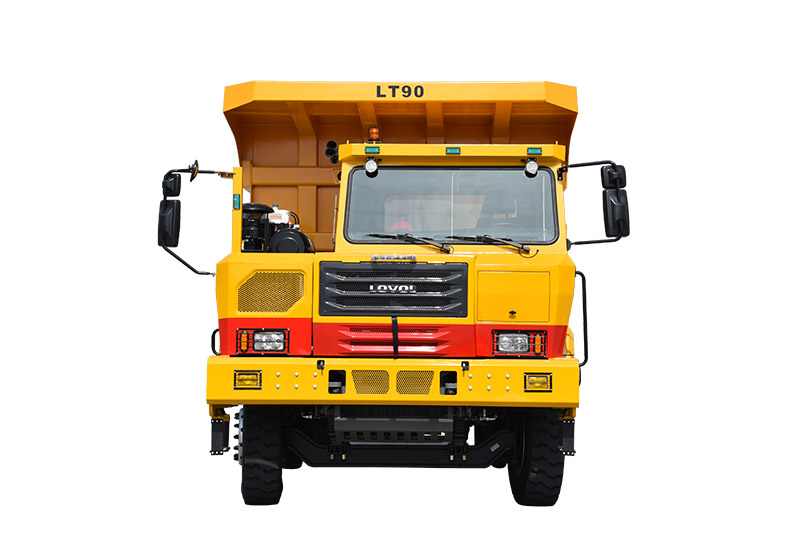

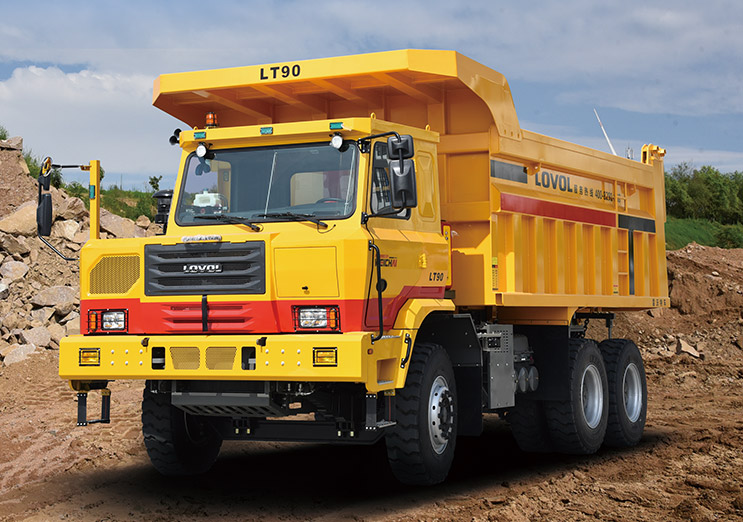

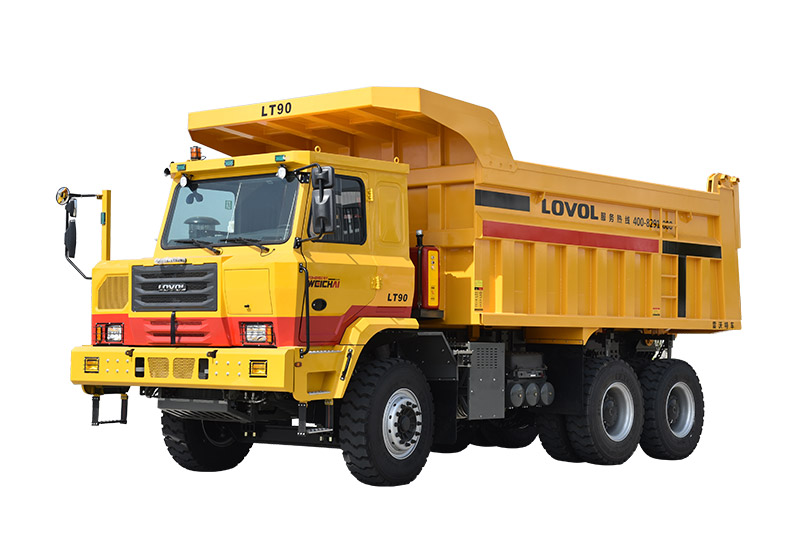

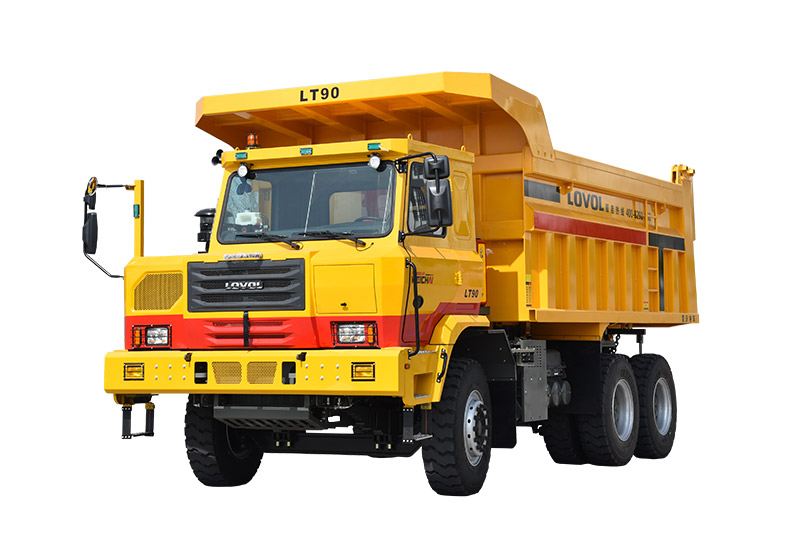

Lovol LT90
  • Lovol LT90
  • Lovol LT90
  • Lovol LT90
Mining Truck

Lovol LT90

  • 90000kg
    Gross Vehicle Weight
  • 60000kg
    Max.Chassis Weight
  • Stage III
    Emissions
View Complete Details
  • Overview
  • Specifications
Overview

Solid and reliable

Super power - up to 390kW; Super wide frame - 1200mm; Super load - larger tires, stronger load capacity

Flexible and efficient

 better match - 13L golden power chain assembly; larger cargo box - standard 32m³; flexible and maneuverable - high ground clearance and small turning radius.

Specifications
Gross Vehicle Weight 90000kg
Max.Chassis Weight 60000kg
Emissions Stage III
Dimensions(L*W*H) 8950×3550×4150mm
Struck 32m³
Wheel Base 3800+1550mm
Max.Travel Speed 40/38/38km/h
Max.Gradeability 30°
Min.Turning Diameter 22m
Min.Ground Clearance 380mm
Engine Model WP12G430E310(stage 3)
Rated Power 316/338/390kW
Transmission 7DS200/8DS240A/8DS240A
Axle Load Capacity 20/35/35t
Front Suspension Type Longitudinal leaf spring
Rear Suspension Type Leaf spring balance suspension
Frame Width 1200mm
Tyre Model 14.00R25
