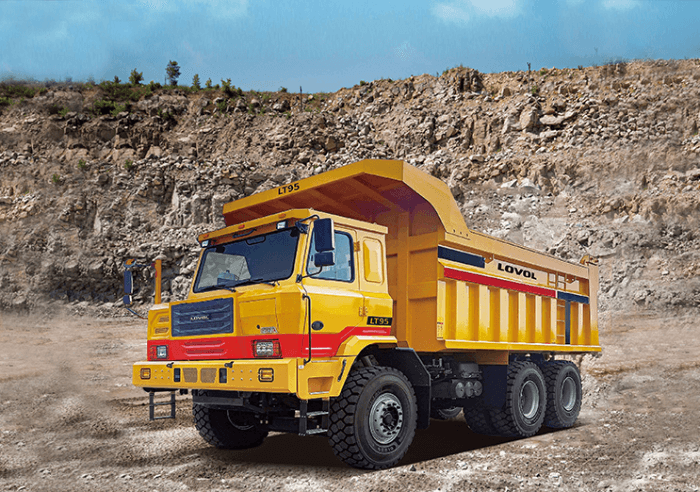

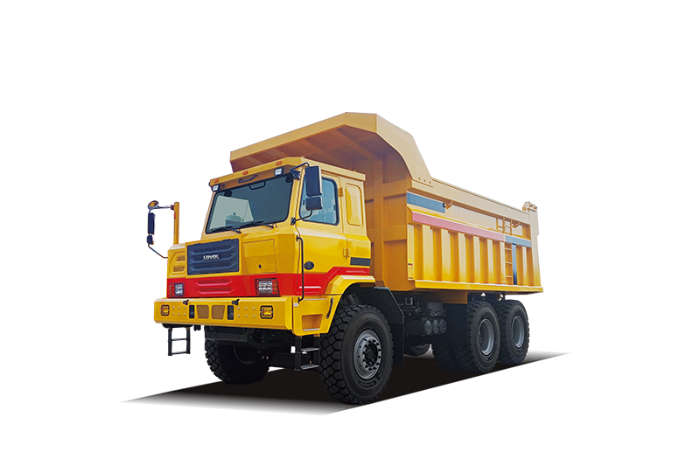

Lovol LT95
  • Lovol LT95
Mining Truck

Lovol LT95

  • 95000kg
    Gross Vehicle Weight
  • 65000kg
    Max.Chassis Weight
  • Stage III
    Emissions
View Complete Details
  • Overview
  • Specifications
Overview

Solid and reliable

Super power - up to 390kW; Super wide frame - 1200mm; Super load - larger tires, stronger load capacity.

Flexible and efficient

better match - 13L golden power chain assembly; larger cargo box - standard 32m³; flexible and maneuverable - high ground clearance and small turning radius.

Specifications
Gross Vehicle Weight 95000kg
Max.Chassis Weight 65000kg
Emissions Stage III
Dimensions(L*W*H) 9350×3610×4180mm
Struck 34m³
Wheel Base 3885+1780mm
Max.Travel Speed 38km/h
Max.Gradeability 30°
Min.Turning Diameter 24m
Min.Ground Clearance 400mm
Engine Model WP12G460E310
Rated Power 338kW
Transmission 8DS240A
Axle Load Capacity 25/35/35t
Front Suspension Type Longitudinal leaf spring
Rear Suspension Type Leaf spring balance suspension
Frame Width 1200mm
Tyre Model 16.00R25 ★★★
