Sunhunk Pharmaceuticals
  • Sunhunk Pharmaceuticals
  • Sunhunk Pharmaceuticals
  • Sunhunk Pharmaceuticals
  • Sunhunk Pharmaceuticals
  • Sunhunk Pharmaceuticals
  • Sunhunk Pharmaceuticals
  • Sunhunk Pharmaceuticals
  • Sunhunk Pharmaceuticals
  • Sunhunk Pharmaceuticals
  • Sunhunk Pharmaceuticals
  • Sunhunk Pharmaceuticals
  • Sunhunk Pharmaceuticals
  • Sunhunk Pharmaceuticals
Refrigerated bicycle

Sunhunk Pharmaceuticals

  • Foaming Process
    Process Standard
  • Food-grade Thermoplastic/Pre-painted Metallic Sheet
    Inner/Outer Skin Material
  • Polyurethane
    Insulation Material
View Complete Details
  • Overview
  • Specifications
Overview

High Insulation

Using open foaming technology, the density of the heat insulation layer is more uniform without voids or trapped air, for more durable heat insulation.

High Strength

The body structure adopts a locking and riveting combination process, with high tensile strength. The floor uses a T6-level high-strength aluminum guide rail full welding process to enhance overall load-bearing capacity and comply with domestic working conditions.

High Aesthetics

Using pre-painted metal panels, the overall appearance is bright and upscale, improving corporate image.

Green Environmental Protection

The container body is made entirely of food-grade materials, safer for transporting goods.

Cold Air Circulation

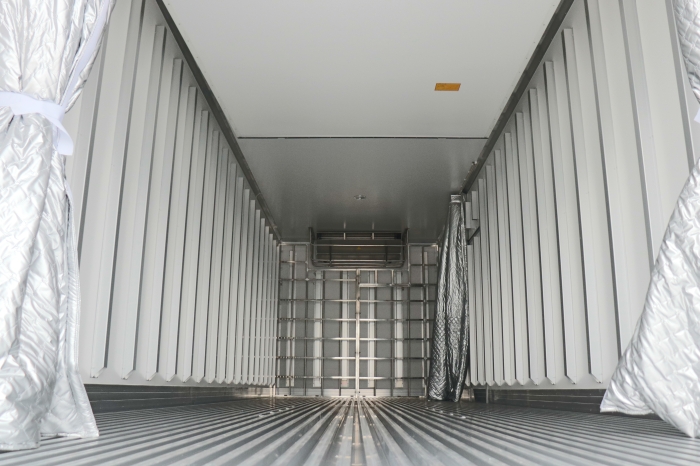

The floor uses a Great Wall-type ventilation guide rail, in combination with vertical ventilation slots on the side plates and ventilation bars on the door panels, for efficient air circulation inside the container and uniform temperature distribution, safer for transporting fruits, vegetables, and flowers.

Ventilation system with strong airflow

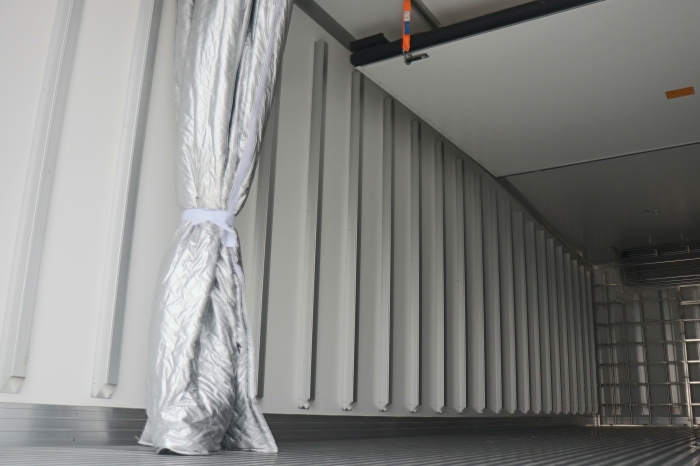

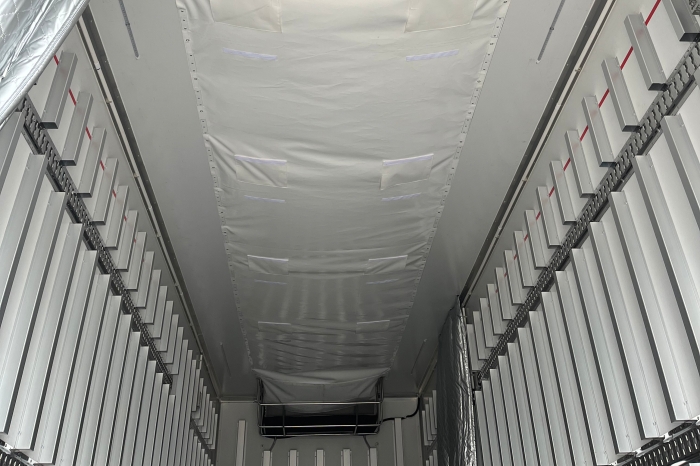

The medicine vehicle adopts a special ventilation slot structure, and medical-specific aluminum ventilation strips are installed on the body of the vehicle around the perimeter. The floor uses a 50mm fort-type aluminum guide rail to ensure smooth three-dimensional air circulation in the box body, which meets the medical monitoring standards.

Specifications
Process Standard Foaming Process
Inner/Outer Skin Material Food-grade Thermoplastic/Pre-painted Metallic Sheet
Insulation Material Polyurethane

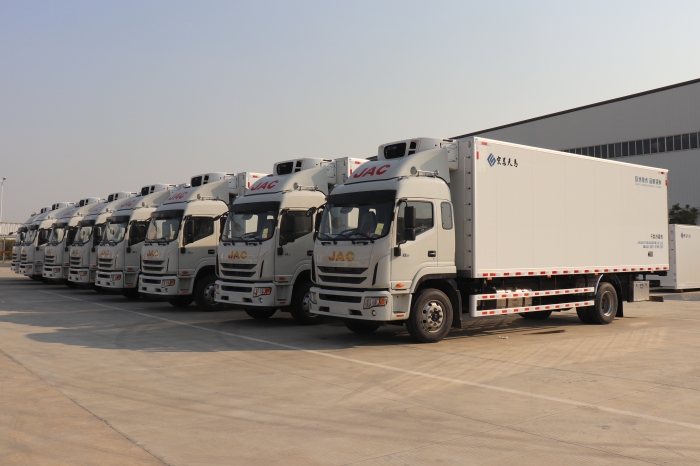

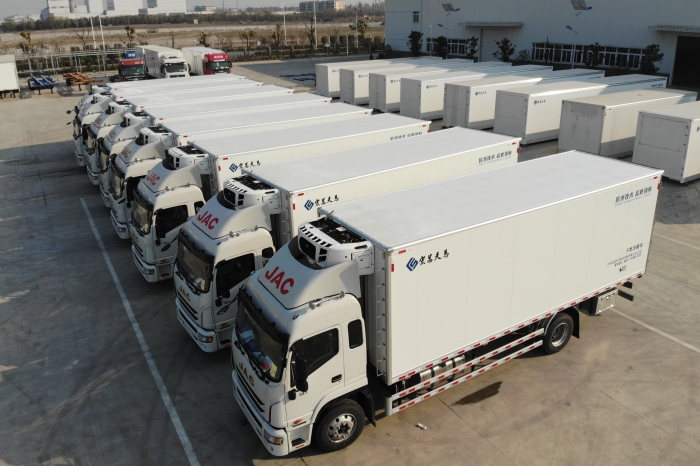

Vehicle Standard refrigerated truck for pharmaceuticals
Insulation Panel Top 100mm
Insulation Panel Sides 100mm
Insulation Panel Front 100mm
Insulation Panel Back 100mm
Insulation Panel Bottom 130(including 50mm Castle-Type Aluminum Guide)mm
Outer Skin Pre-painted Aluminum Sheet
Bottom Skin Material Thermoplastic Sheet
Bottom Sub-frame  High-Strength Steel

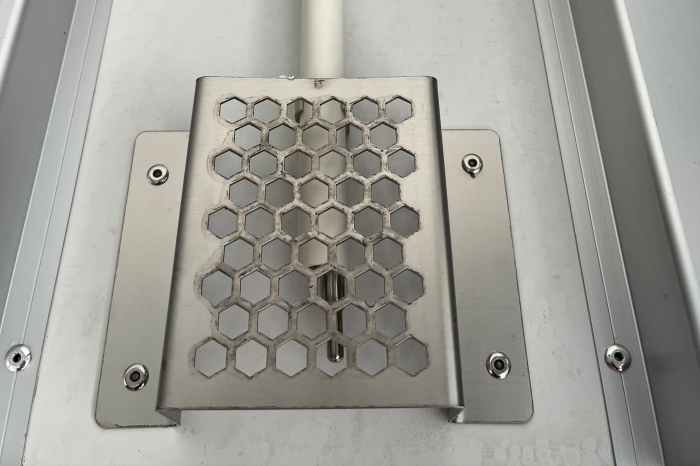

Bottom Drainage Hole SUNHUNK Standard Configuration, 2 at the Front or 2 at Both Ends

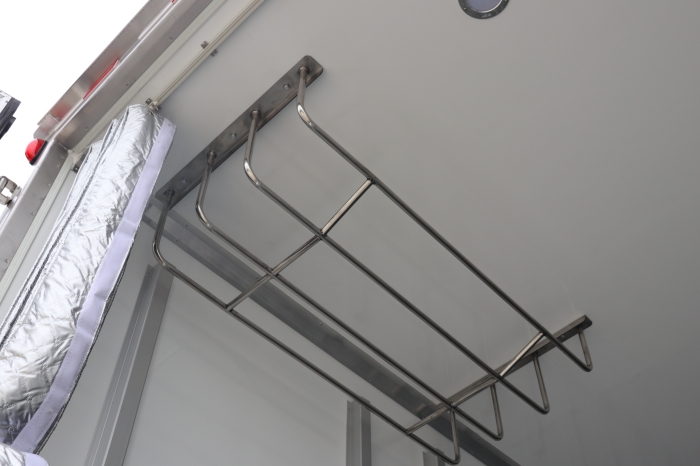

Rear Door Frame and Hardware 304 Stainless Steel
Wear Plate High-Strength Aluminum Profile (Approximately 150mm High)
Floor Configuration Castle-Type Aluminum Guide (Approximately 50mm)

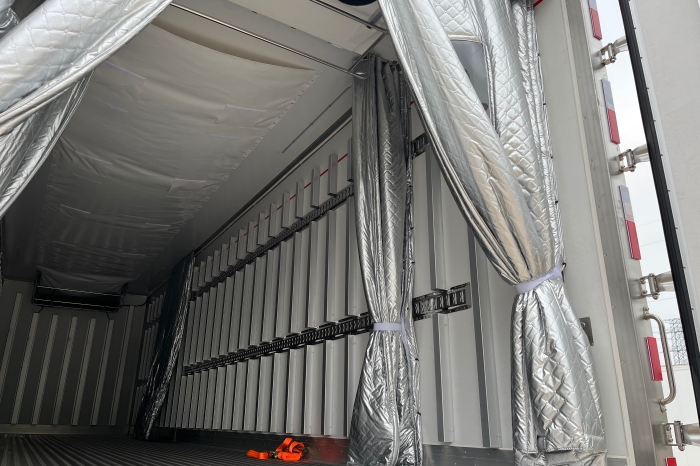

Medical Curtain Ordinary PVC Curtain/Waterproof Cotton Curtain

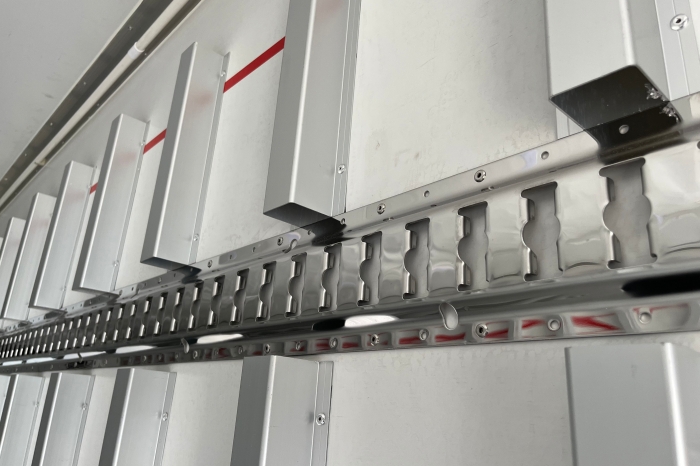

Medical Ventilation Structure Rectangular Aluminum Alloy Medical Ventilation Strip with a Spacing of 400mm, Front Plate Size of 100*80mm, Side and Back Plate Size of 50*50mm
Meat Sliding Track empty
Seafood Pre- embedding empty
