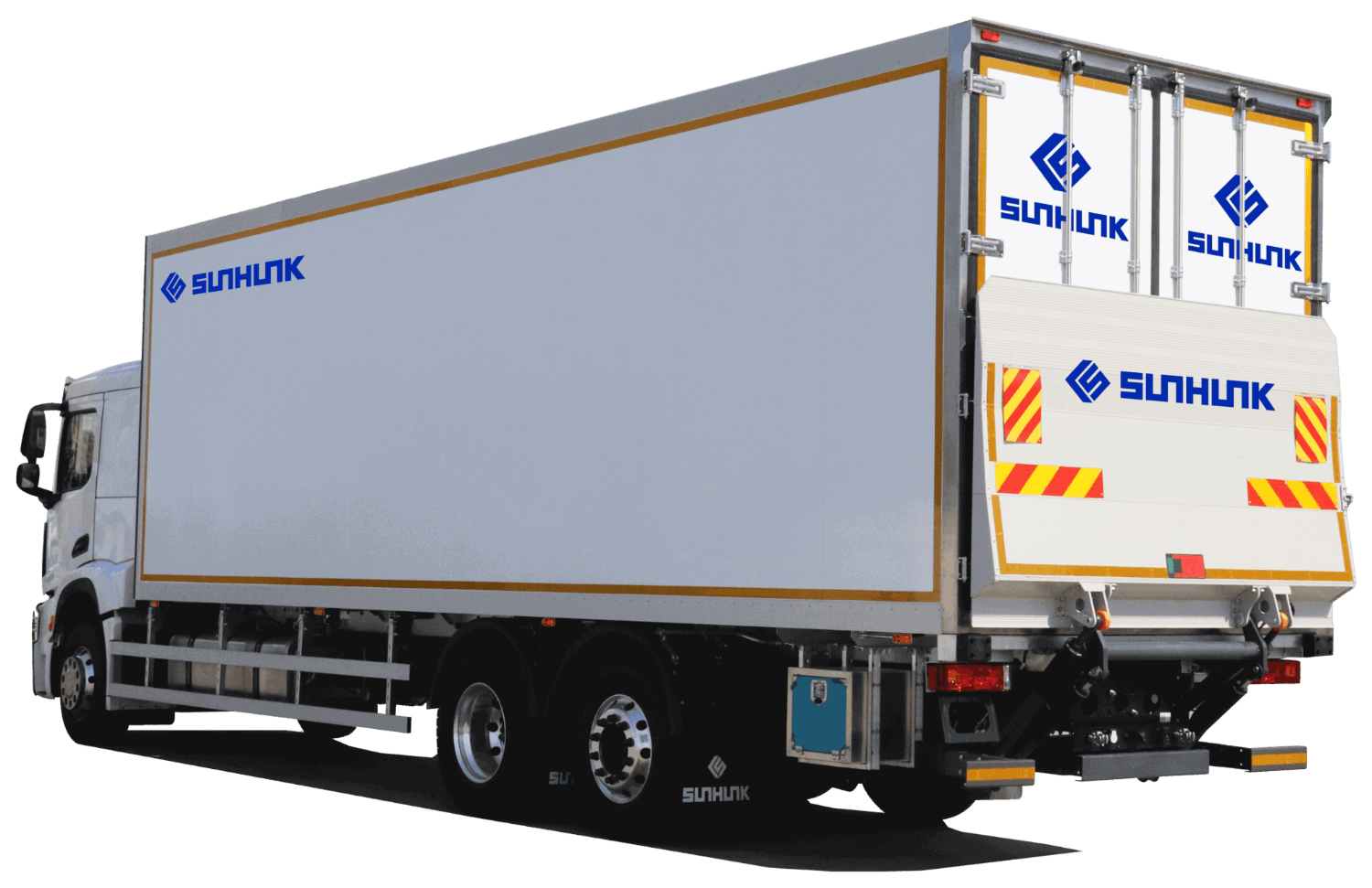

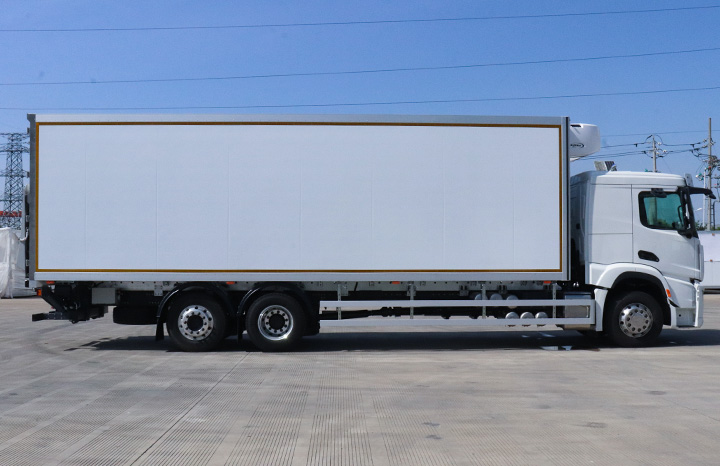

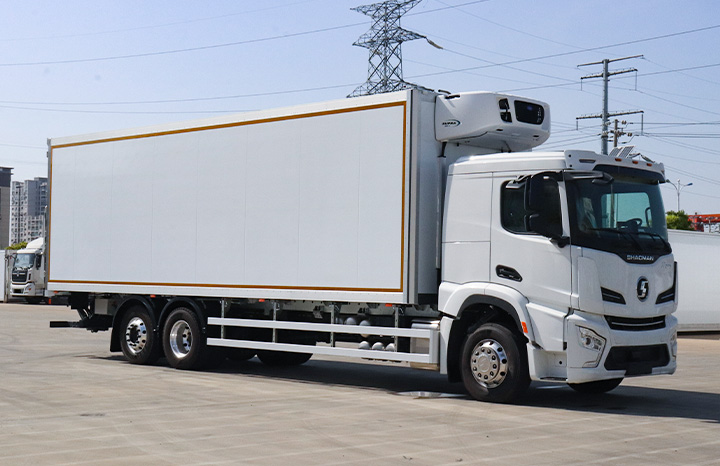

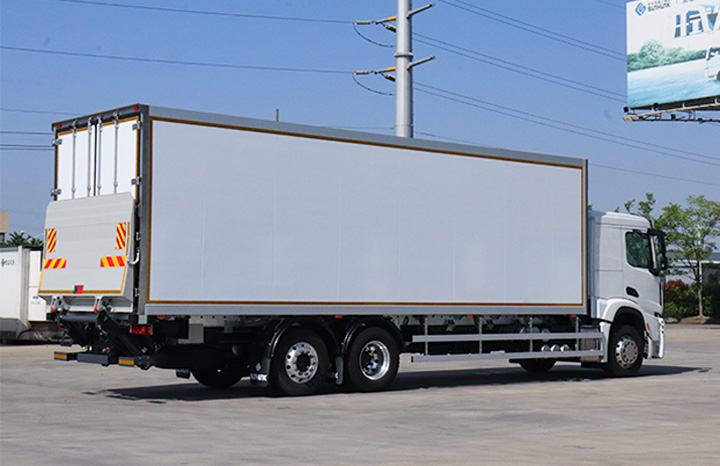

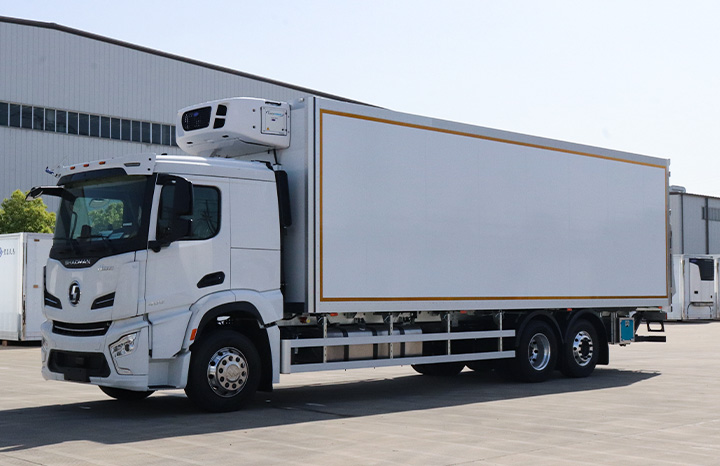

Sunhunk Frozen Fresh
  • Sunhunk Frozen Fresh
  • Sunhunk Frozen Fresh
  • Sunhunk Frozen Fresh
  • Sunhunk Frozen Fresh
  • Sunhunk Frozen Fresh
  • Sunhunk Frozen Fresh
Refrigerated bicycle

Sunhunk Frozen Fresh

  • Foaming Process
    Process Standard
  • Food-grade Thermoplastic/Pre-painted Metallic Sheet
    Inner/Outer Skin Material
  • Polyurethane
    Insulation Material
View Complete Details
  • Overview
  • Specifications
Overview

High Strength

The body structure adopts a locking and riveting combination process, with high tensile strength. The floor uses a T6-level high-strength aluminum guide rail full welding process to enhance overall load-bearing capacity and comply with domestic working conditions.

High Insulation

Using open foaming technology, the density of the heat insulation layer is more uniform without voids or trapped air, for more durable heat insulation.

High Aesthetics

Using pre-painted metal panels, the overall appearance is bright and upscale, improving corporate image.

Lightweighting

The body weight of the container is more than 500 kg lighter than a steel box, helping to carry more goods or save fuel.

Green Environmental Protection

The container body is made entirely of food-grade materials, safer for transporting goods.

Specifications
Process Standard Foaming Process
Inner/Outer Skin Material Food-grade Thermoplastic/Pre-painted Metallic Sheet
Insulation Material Polyurethane
Vehicle Standard refrigerated truck for frozen fresh goods
Insulation Panel Top 80mm
Insulation Panel Sides 80mm
Insulation Panel Front 80mm
Insulation Panel Back 80mm
Insulation Panel Bottom 137 (including 35mm Castle-Type Aluminum Guide)mm
Outer Skin Pre-painted Aluminum Sheet
Bottom Skin Material Thermoplastic Sheet
Bottom Sub-frame  High-Strength Steel
Bottom Drainage Hole SUNHUNK Standard Configuration, 2 at the Front or 2 at Both Ends
Rear Door Frame and Hardware 304 Stainless Steel
Wear Plate High-Strength Aluminum Profile (Approximately 300mm High)

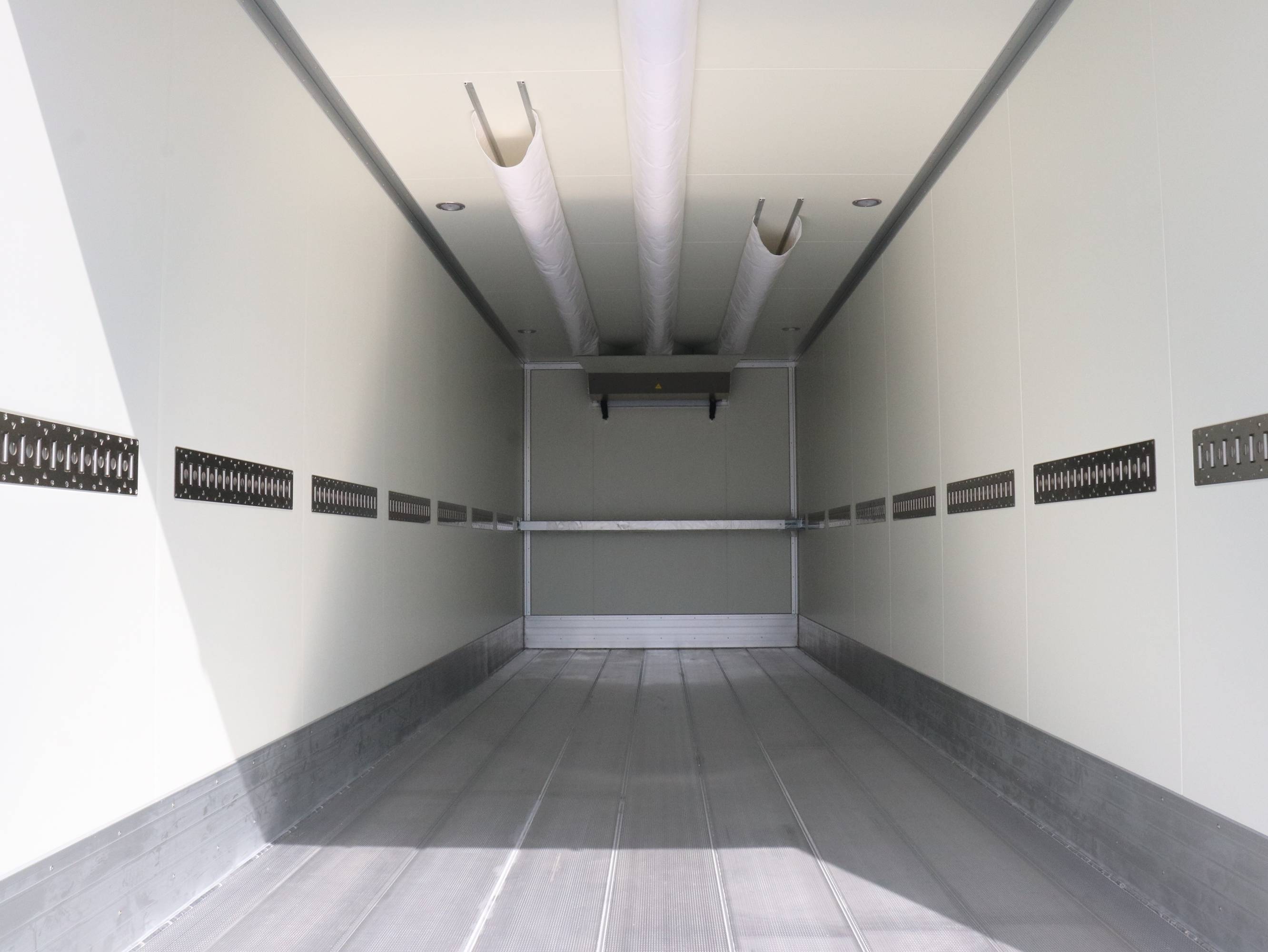

Floor Configuration Castle-Type Aluminum Guide (Approximately 35mm)
Medical Curtain empty
Medical Ventilation Structure empty
Meat Sliding Track empty
Seafood Pre- embedding empty
