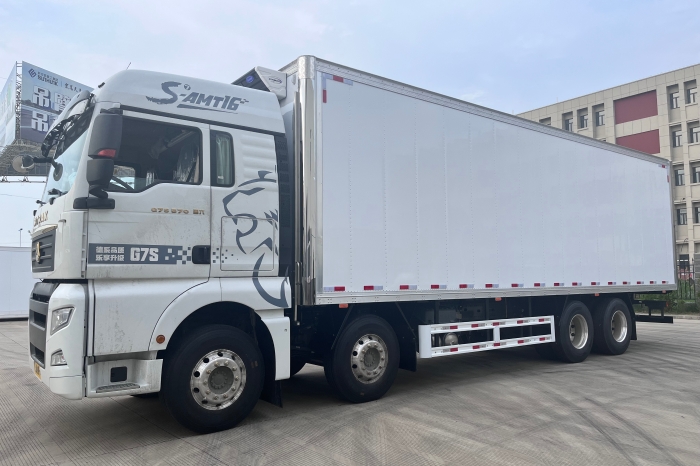

Sunhunk Seafood
  • Sunhunk Seafood
  • Sunhunk Seafood
  • Sunhunk Seafood
  • Sunhunk Seafood
  • Sunhunk Seafood
  • Sunhunk Seafood
  • Sunhunk Seafood
  • Sunhunk Seafood
  • Sunhunk Seafood
  • Sunhunk Seafood
  • Sunhunk Seafood
Refrigerated bicycle

Sunhunk Seafood

  • Foaming Process
    Process Standard
  • Food-grade Thermoplastic/Pre-painted Metallic Sheet
    Inner/Outer Skin Material
  • Polyurethane
    Insulation Material
View Complete Details
  • Overview
  • Specifications
Overview

High Insulation

Using open foaming technology, the density of the heat insulation layer is more uniform without voids or trapped air, for more durable heat insulation.

High Strength

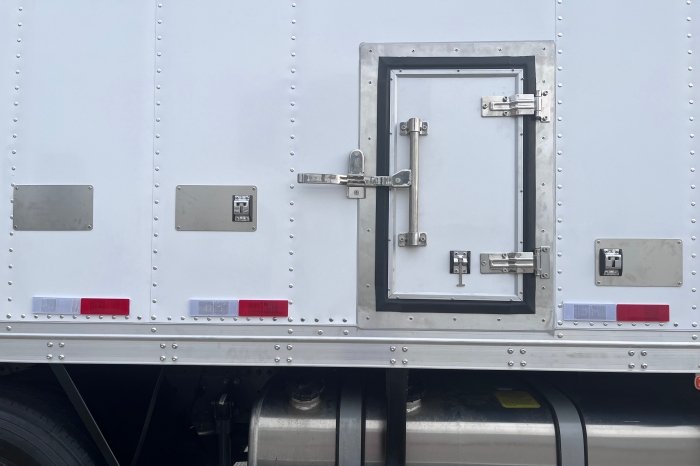

The body structure adopts a locking and riveting combination process, with high tensile strength. The floor uses a T6-level high-strength aluminum guide rail full welding process to enhance overall load-bearing capacity and comply with domestic working conditions.

High Aesthetics

Using pre-painted metal panels, the overall appearance is bright and upscale, improving corporate image.

Green Environmental Protection

The container body is made entirely of food-grade materials, safer for transporting goods.

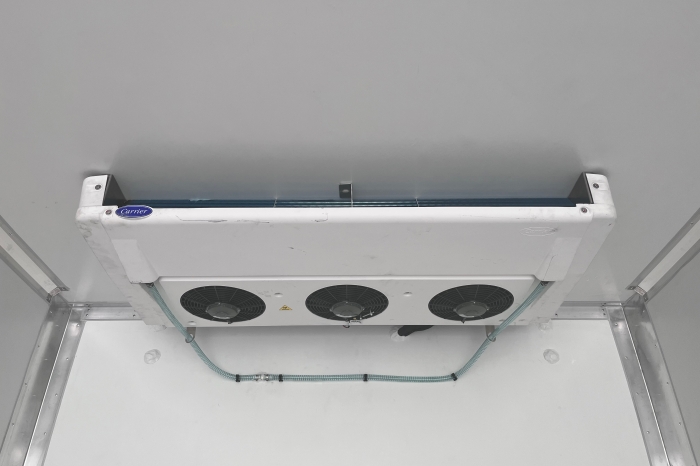

Cold Air Circulation

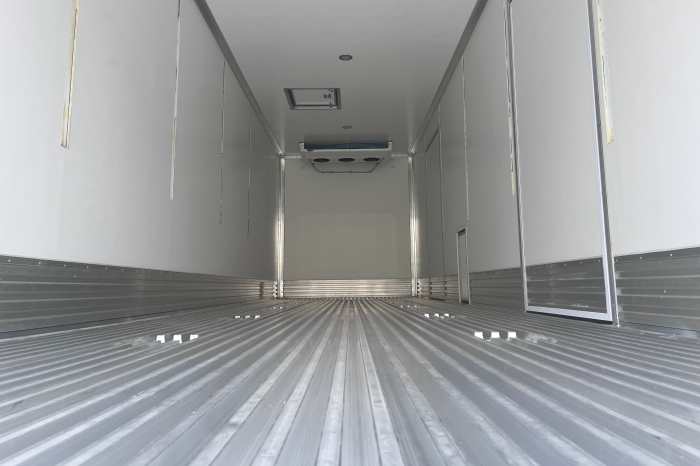

The floor uses a Great Wall-type ventilation guide rail, in combination with vertical ventilation slots on the side plates and ventilation bars on the door panels, for efficient air circulation inside the container and uniform temperature distribution, safer for transporting fruits, vegetables, and flowers.

Specifications
Process Standard Foaming Process
Inner/Outer Skin Material Food-grade Thermoplastic/Pre-painted Metallic Sheet
Insulation Material Polyurethane
Vehicle Standard refrigerated truck for frozen fresh goods
Insulation Panel Top 80mm
Insulation Panel Sides 80mm
Insulation Panel Front 80mm
Insulation Panel Back 80mm
Insulation Panel Bottom 100mm
Outer Skin Pre-painted Aluminum Sheet
Bottom Skin Material Thermoplastic Sheet
Bottom Sub-frame  High-Strength Steel

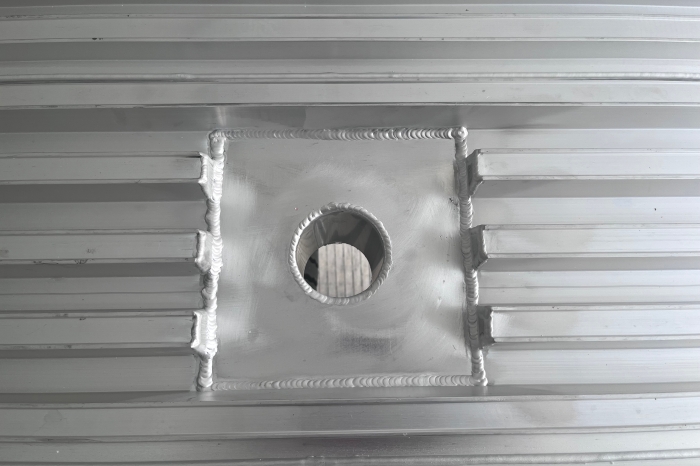

Bottom Drainage Hole Two Seafood Drainage Holes at Both Ends
Rear Door Frame and Hardware 304 Stainless Steel
Wear Plate Stainless Steel Plate with a Height of ≥200mm

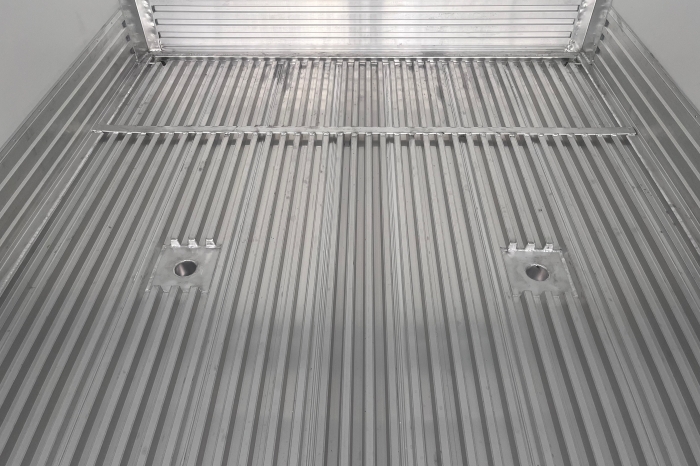

Floor Configuration 2mm Flat Stainless Steel Plate,Rear End Seafood Drainage Trough
Medical Curtain empty
Medical Ventilation Structure empty
Meat Sliding Track empty
Seafood Pre- embedding Oxygen Pipe Pre- embedding
